Consumable
Cutting Plotters Supplies
| (⨳) : Attached as standard accessory (the quantity attached is different) | |||||
|---|---|---|---|---|---|
| Item (Model) |
Specification | FCX2000 | FCX4000 | FC9000 | CE8000 |
| Cutting Blade (CB09UB-5) |
 0.9mm dia. 45º angle, Super steel 5 blades/pack Self-adhesive marking film (vinyl, fluorescent, refractive), thin sheet, up to 0.25 mm thick. |
(⨳) | (⨳) | ||
| Cutting Blade (CB09-E) |
0.9mm dia. 45º angle 5 blades/pack * Economy model for PHP33-CB09N/PHP35-CB09 Life : 2-3km(Paper), 5km(Vinyl). |
||||
| Cutting Blade (CB09-L) |
0.9mm dia. 45º angle 5 blades/pack * Low price model for PHP33-CB09N/PHP35-CB09 Life : less 2km(Paper), less 5km(Vinyl). |
||||
| Cutting Blade (CB09-P) |
0.9mm dia. 45º angle 5 blades/pack * High durability model for PHP33-CB09N/PHP35-CB09 Life : 7-8km(Paper), 28-30km(Vinyl). |
||||
| Cutting Blade (CB09UB-K60-5) |
 0.9mm dia. 60º angle, Super steel blade 5 blades/pack Thinner film (Tint film), 0.03 mm to 0.25 mm thick |
||||
| Cutting Blade (CB15U-5) |
 1.5mm dia. 45º angle, Super steel blade 5 blades/pack Rigid or thick film or sheet, heavy paper (pattern paper, oil board), 0.25 mm to 0.5 mm thick * pattern paper, oil board are only FCX series |
(⨳) | (⨳) | ||
| Cutting Blade (CB15U-K30-5) |
 1.5mm dia. 30º angle, Super steel, 5 blades/pack Rigid or thick sheet, 0.25 mm to 0.5 mm thick. Sandblast resist rubber, up to 1.0 mm thick. And also small detailed characters on marking film (up to 0.25 mm thick) * cutting small detailed characters are only FCX series |
(⨳) | |||
| Cutting Blade (CB15UA-5) |
 1.5mm dia. 45º angle, Super steel, 5 blades/pack High-intensity reflective film or harder film, up to 0.5 mm thick |
||||
| Cutting Blade (CB15UA-K30-5) |
 1.5mm dia. 30º angle, Super steel, 5 blades/pack High-intensity reflective film or harder film, up to 1.0 mm thick. |
||||
| Cutting Blade (CB30UC-1) |
 3.0mm dia. 45º angle, Super steel, 5 blades/pack Rigid or thicker sheet (cardboard), up to 1.2 mm thick. * Cutting accuracy is not guaranteed. Be sure to try it before using it. |
||||
| Cutting Blade (PM-CB-001) |
 3.0mm dia. 30º angle, Super steel, 5 blades/pack Rigid or thicker sheet (soft plastic, rubber, cardboard), 1.0 mm to 2.0 mm thick. * Cutting accuracy is not guaranteed. Be sure to try it before using it. |
||||
| Cutting Blade (PM-CC-002) |
 Standard cross-cutter blade |
||||
| Cutting Blade (PHP33-CB09N-HS) |
 For CB09U series blade 1 set/pack |
(⨳) | (⨳) | ||
| Cutting blade holder (PHP33-CB15N-HS) |
 For CB15U series blade 1 set/pack |
(⨳) | |||

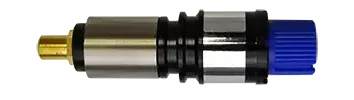

| Cutting blade holder ( PHP35-CB09-HS) |
 For CB09U series blade 1 set/pack |
||||
| Cutting blade holder (PHP35-CB15-HS) |
 For CB15U series blade 1 set/pack |
(⨳) | |||

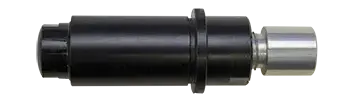

| Cutting blade holder (PM-CH-001) |
 For CB30UC / PM-CB-001 cutting blade 1 set/pack |
||||

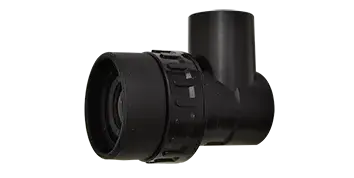

| Loupe (PM-CT-001) |
 Checking blade length & quality of blade tip, for PHP33 and PHP35 series 1 set/pack |
(⨳) | (⨳) | (⨳) | (⨳) |

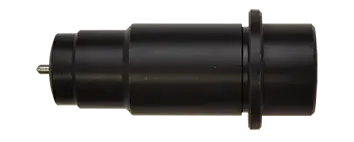

| Creasing / Scoring tool (CP-001) |
 Stick type, for heavy paper 1 set/pack |
||||

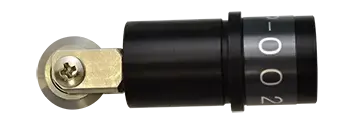

| Creasing / Scoring tool (CP-002) |
 Roller type (R0.2), for heavy paper 1 set/pack |
||||

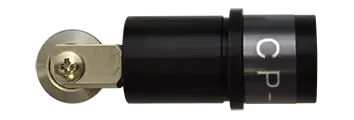

| Creasing / Scoring tool (CP-003) |
 Roller type (R0.6), for cardboard 1 set/pack |
||||

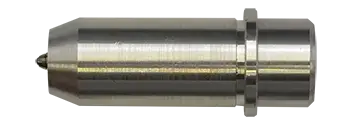

| Creasing / Scoring tool (PM-CT-002) |
 Ball on tip of stick, for curve on heavy paper 1 set/pack |
||||

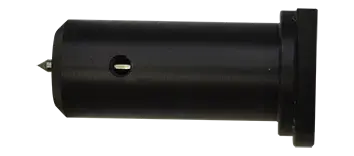

| Pouncing tool (PPA33-TP12) |
 Steel pin 1.2 mm dia.(for FC9000) 1 set/pack |
||||
| Fiber-tip pen holder (PHP31-FIBER) |
 Pen holder for KF700 series pen 1 set/pack |
(⨳) | (⨳) | (⨳) | (⨳) |
| Fiber-tip pen (KF700-BK) |
 Water-based fiber-tip pen, Black 10 pens/pack |
(⨳) | (⨳) | (⨳) | (⨳) |
| Fiber-tip pen (KF700-RD) |
 Water-based fiber-tip pen, Red 10 pens/pack |
||||
| Ballpoint holder (PHP34-BALL) |
 Pen holder for the KB700-BK pen 1 set/pack *Limited Stock (End of Production) |
||||
| Ballpoint pen (KB700-BK) |
 Oil-based ballpoint pen, Black 10 pens/pack |
||||

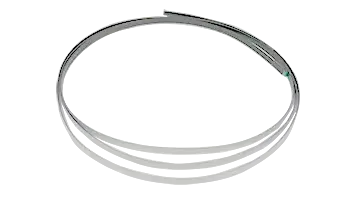

| Cutting mat (PM-CR-005) |
 For FC9000-75 replacing cutting mat 2 sets/pack |
||||
| Cutting mat (PM-CR-006) |
For FC9000-100 replacing cutting mat 2 sets/pack |
||||
| Cutting mat (PM-CR-007) |
For FC9000-140 replacing cutting mat 2 sets/pack |
||||
| Cutting mat (PM-CR-008) |
For FC9000-160 replacing cutting mat 2 sets/pack |
||||
| Cutting mat (PM-CR-013) |
For CE8000-40 replacement cutting mat 2 sets/pack |
||||
| Cutting mat (PM-CR-014) |
For CE8000-60 replacement cutting mat 2 sets/pack |
||||
| Cutting mat (PM-CR-015) |
For CE8000-130 replacement cutting mat 2 sets/pack |
||||
| Protect sheet (PM-CR-002A) |
For protecting the writing panel of FCX4000-50ES, Transparent vinyl, thickness 0.3 mm 1 sheet/pack |
||||
| Protect sheet (PM-CR-003A) |
For protecting the writing panel of FCX4000-60ES, Transparent vinyl, thickness 0.3 mm
1 sheet/pack |
||||
| Protect sheet (PM-CR-004A) |
For protecting the writing panel of FCX2000-120ES, Transparent vinyl, thickness 0.3 mm 1 sheet/pack |
||||

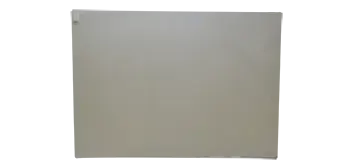

| Adhesive sheet, Cling mat (CM-0002) |
 Adhesive sheet, size 435 x 610 mm 2 sheets/pack |
||||

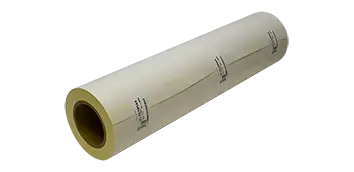

| Adhesive sheet, Cling mat (CM-0003-R1A) |
 Adhesive sheet, supplying in roll size 545 mm x 20 m 1 roll/pack |
||||

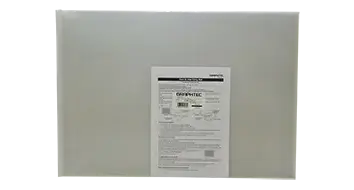

| Adhesive sheet, Cling mat (CM-0004) |
 Cling mat for film based materials size 435 x 610 mm 2 sheets/pack |
||||

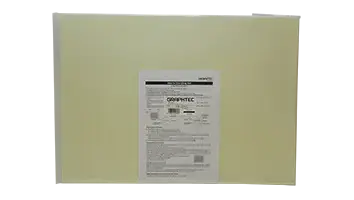

| Adhesive sheet, Cling mat (CM-0005) |
 Cling mat for paper based materials size 435 x 610 mm 2 sheets/pack |
||||
| Adhesive sheet, Cling mat (PM-CM-002) |
Cling mat for paper based type material size 660 mm x 488 mm 2 sheets/pack |
||||

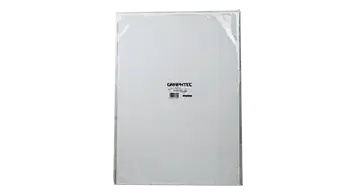

| Carrier Sheet (CR09300-A3) |
 A3 size, 2 sheets/pack * Please consider to use together with optional carrier sheet table “OPH-A45” for CE7000-40/60. |
||||
| Carrier Sheet ( PM-CM-003A) |
350.2mm x 528mm (Adhesive range: 330.2mm x 483mm) 1 sheet/pack |
||||
| Cutting Blade (PM-ET-001) |
USB Cable, 2.9m long | ||||
Blade and the corresponding holder List
| Cutting Blade | Holder | |||||
|---|---|---|---|---|---|---|
| Diameter | Item | PHP33-CB09N-HS |
PHP35-CB09-HS |
PHP33-CB15N-HS |
PHP35-CB15-HS |
PM-CH-001 |
| 0.9mm | CB09UB-5 CB09-E CB09-L CB09-P1 |
|||||
| CB09UB-K60-5 |
||||||
| 1.5mm (*1) |
CB15U-5 |
|||||
| CB15U-K30-5 |
||||||
| CB15UA-5 |
||||||
| CB15UA-K30-5 |
||||||
| 3.0mm (*2) |
CB30UC-1 |
|||||
| PM-CB-001 |
(*1) It is required to remove the spring. (*2) Cutting accuracy is not guaranteed. Be sure to try it before using it. |
|||||
