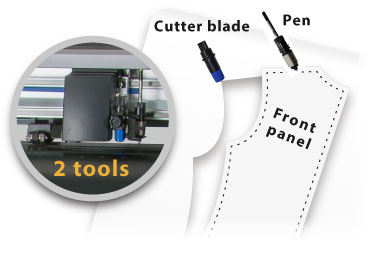

It holds both a pen and a blade.
The pen is for plotting and detailing graded patterns with seams, text, notches, grain direction, etc. The blade is to make the perforated cut of the pattern outline.
The tool is automatically switched for cutting and plotting as needed, ensuring a high quality pattern and maximum productivity.

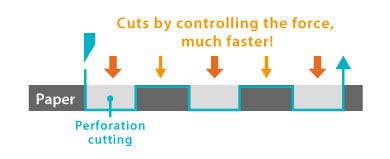

Perforation cutting is performed by controlling the cutting force instead of blade up/down movements, dramatically increasing throughput.
The force is controlled by the design software using a new command.

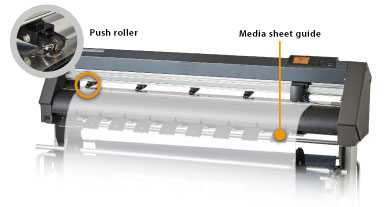

Equipped with five push rollers as standard accessories. The new design of XY mechanism increased rigidity of the main unit and improved media transportability.
Pressure of the 3 middle push rollers can be adjusted in three levels (Strong / Medium / Weak), it helps to prevent media lifting.
(Please refer to the user manual for setting pressure)

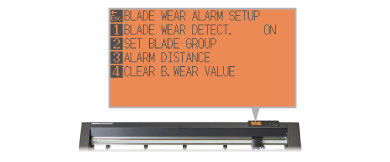

Able to measure cutting distance of consumables such as blades and pens, and set conditions for tool replacement.

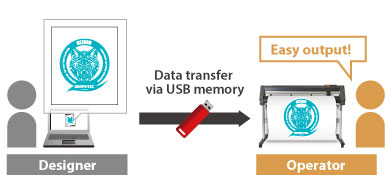

USB memory reading port enables users to output data via USB flash memory without PC or dedicated software.
* The USB memory format only supports FAT32.
Please note that NTFS and exFAT are not supported.

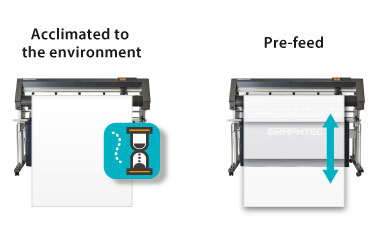

The design of the media feed system ensures that loaded media is acclimated to the ambient temperature and humidity before plotting or cutting. The user-selectable media pre-feed function sets two outer tracks, enhancing media handling.
Together, these two media feed elements ensure reliable cutting and plotting quality within the desired operating environment.
